Figure 2b. Data Portal Spring 2017.jpg

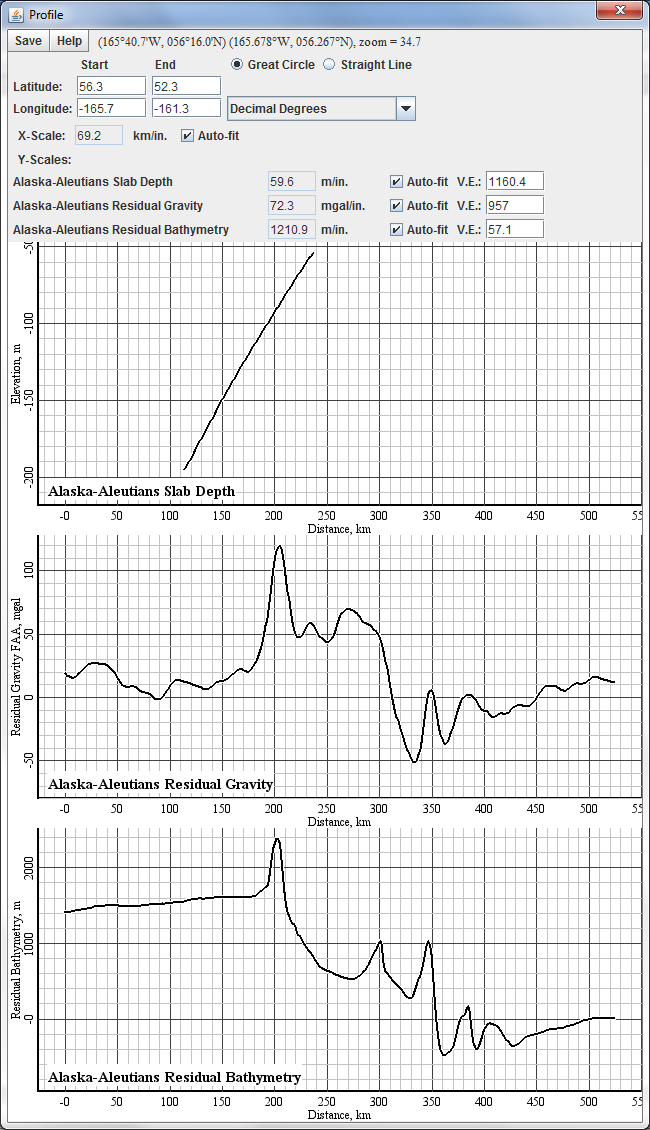

Figure 2b (right). New in GeoMapApp version 3.6.4 is the capability to generate a co-registered vertical stack of up to four profiles. Here, the Bassett and Watts residual bathymetry and residual gravity are in the lower and middle panel respectively and the Syracuse and Abers depth to the top of the subducting slab is in the top panel.
